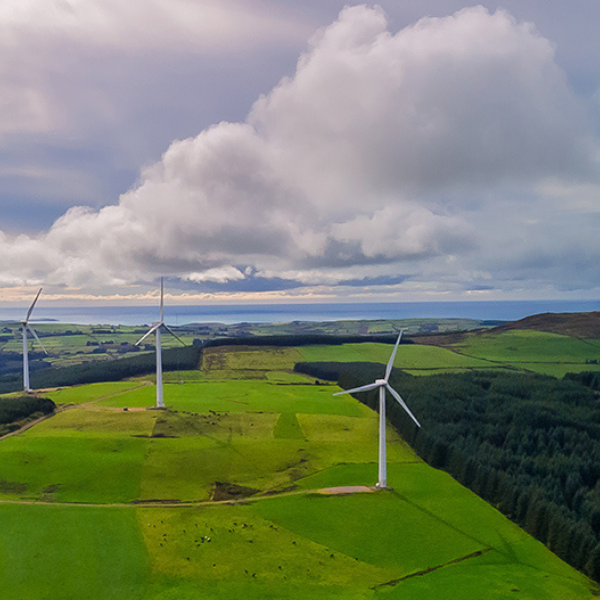

Specialist Irish 110kV Cable Jointing ICP Works for Dunmanway Wind Farm

Challenge

• Integrating works into an active ICP grid-connection programme with strict interfaces and sequencing.
• Working along extended and variable terrain cable routes where trenching, rock conditions and access had been identified as significant engineering challenges.
• Ensuring that the highest levels of safety and quality for HV jointing in rural and constrained working environments are maintained.
• Maintaining compliance with 110 kV installation standards, particularly around cable bending radii, pulling tensions and joint bay specifications.

Solution

• Applied a structured, quality‑driven approach to the delivery of the HV jointing works, ensuring compliance, safety and programme certainty throughout.
• Deployed certified 110 kV jointers with full manufacturer‑approved training, ensuring all installations met specification and OEM standards.
• Completed all jointing in clean, controlled environments to protect insulation integrity and workmanship quality.
• Worked closely with Suir Engineering’s civil and electrical teams, coordinating joint‑bay construction, cable preparation and testing windows to maintain programme momentum.
• Carried out all required HV pressure testing and insulation‑resistance checks prior to handover, confirming the circuits were safe and ready for energisation.

Outcome

• Despite the complexity of the route and programme, the project was successfully delivered to the highest technical and safety standards, achieving full compliance and a defect-free handover.
• All 110 kV joints were installed in full accordance with OEM guidance and ICP quality requirements, with zero defects recorded during testing and inspection.
• The circuits were successfully integrated into the Dunmanway 110 kV grid‑connection scheme, meeting all ESB Networks technical compliance criteria.
• The project further strengthened our long‑standing partnership with Suir Engineering across major HV renewable‑energy connection projects.
