Delivering 132kV Terminal Structure & EHV Earthing Works for Winkburn Solar Farm

Challenge

• Working adjacent to live 132kV overhead lines.
• Managing and maintaining strict adherence to environmental controls with the ancient woodland bordering the site.
• Delivering works within a reduced working footprint.
• All works had to be delivered using made-to-order components.

Solution

To mitigate ground and environmental risks, we installed trackway to protect the land and maintain safe access. Our specialist EHV team then:

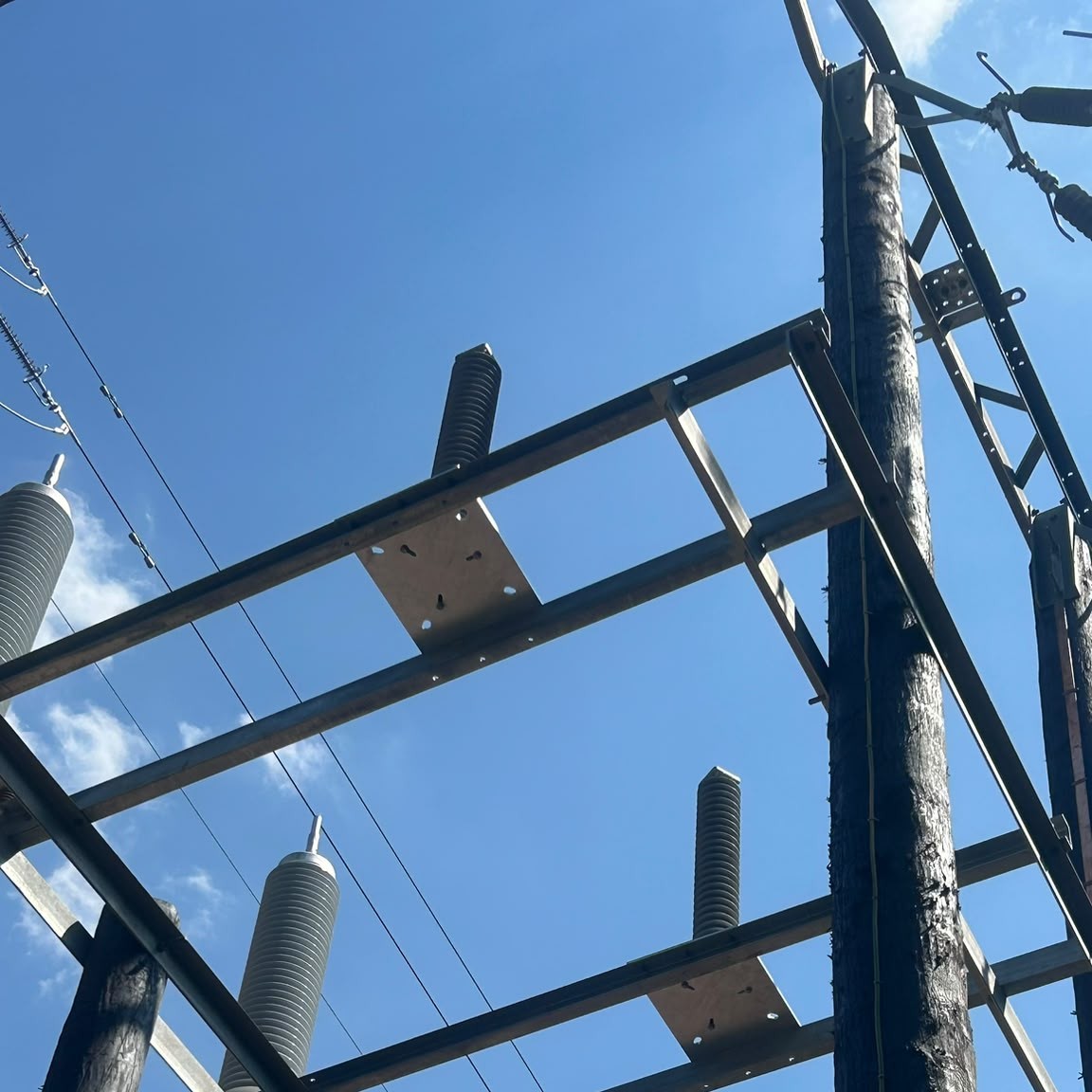

• Assembled and dressed the four-pole terminal structure with cable sealing ends and surge arrestors.
• Installed foundations and GS6 compliance measures
• Delivered earthing works including 2no. bonding connections to the new substation
• Coordinated daily with multiple contractors and NGED
• Applied strict environmental controls due to proximity to ancient woodland
• Ensured all activities complied fully with the approved RAMS

Outcome

• Completed four-pole terminal structure and earthing installation on time and within budget
• Fully compliant with NGED adoption standards
• Safe delivery despite wet conditions and environmental sensitivities
• All works completed and ready for NGED to undertake the non‑contestable tower connection
